Proven Power Solutions

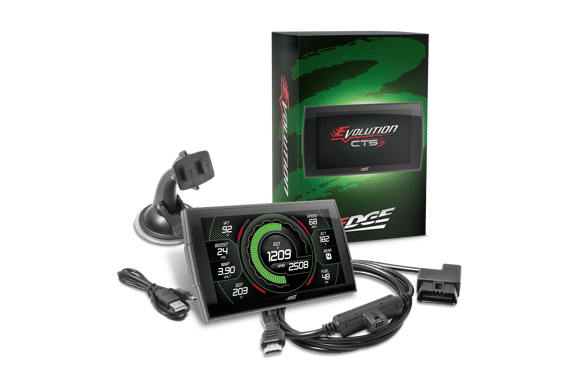

EVOLUTION CTS3 - 50 STATE LEGAL 2003-2012 Cummins Diesel

EVOLUTION CTS3 - 50 STATE LEGAL 2003-2012 Cummins Diesel

Regular price $730.95 USD
Regular price Sale price $730.95 USD
Sale Sold out
Introducing the next generation Evolution CTS3: all-new, full-Color Touch Screen CTS3. The CTS3 will continue to include all of the great features, benefits, and extended coverage from the CTS2 product line, all while adding a sleek, new exterior and cutting-edge screen. The best look in the industry delivered via a revamped, slim case design and a 5 full-color capacitive edge-to-edge display with true swipe screen technology. Not only is the display sharper, but the higher resolution screen delivers a tremendous pixel ratio and top-notch graphics. New screen layouts, faster processing speeds, and WiFi update capability are just a few things that set the Evolution CTS3 apart from all other competitors. The Evolution CTS3 reprograms your vehicle's stock computer through the OBDII port of the vehicle. The Evolution is used to save the stock files from the vehicle's computer and then upload the Edge calibrations into the vehicle's computer. This product comes with multiple power levels custom tuned by a whole team of engineers and can be installed in minutes without ever popping the hood. The Evolution greatly increases horsepower and torque and not only does it re-tune your vehicle, but it also stays mounted in the cab of the vehicle and features real-time, monitoring of vital engine and vehicle data for a complete gauge package. If you're looking for a product to improve throttle response, that extra power when towing, race down the track, increase fuel economy, or to just improve the overall driveability of your truck then the Evolution precisely what you need. Not only do you get these increase performance features but you get a monitor that offers a clean simple solution for gauges like EGT (exhaust gas temperature), Boost readings, transmission temp, load percent, percentage of fuel left, and more with the expandability to even add more with our EAS (expandable accessory system) or Edges backup camera.


  • Most comprehensive, state-of-the-art, multi-gauge/tuner touch-screen display on the market
  • 3rd Generation design is faster and more capable than ever
  • Power levels designed for daily driving, towing, performance and extreme
  • Simple installation just plug into OBDII port. No wiring required
  • Monitor key vehicle parameters like trans temp, boost, RPM and dozens more
  • Full color, 5 capacitive touch screen with auto-dimming
  • Offers crystal clear data at your fingertips
  • Highly customizable gauges and backgrounds
  • Boot up directly to gauge screen upon key cycle
  • Swipe capability allows easy switching between screens as needed for towing, performance, economy, etc
  • Built-in performance meter measures 0-60, mile times and more
  • Advanced integrated data logger with export capability
  • Ability to add vehicle licenses to tune multiple vehicles with one product
  • Clear and Read DTC codes
  • Wi-fi update-able

Alerts And Records Yes
Axle Gear Ratio Yes
Check Clear Dtcs Yes
Color Screen Yes
Color Touch Screen Display Yes
Compatible With Expandable Accessory System Eas Yes
Custom Background Mystyle Yes
Custom Pod Mount Available Yes
Data Acquisition Advanced + PIDS
Economy Tune Yes
Eo Number D-802-13
In Cab Monitoring Yes
Internet Updateablef Yes
Manual Regen Yes
Performance Tests Yes
Performance Tunes Yes
Power Level 1 25 HP & 75 lb-ft
Power Level 2 45 HP & 145 lb-ft
Power Level 3 70 HP & 190 lb-ft
Power Level 4 95 HP & 240 lb-ft
Screen Auto Dim Yes
Speed Limiter 102-250
Speedometer Correction Yes
Tire Size 22.5^ - 42^
Torque Management Adjustment Edge Optimized, Stock, Advanced
Tow Tune Yes
Vehicle Data Parameters Accel Pedal Position
Barometric Pressure
Battery Voltage
Calculated Fuel Rate 02+
Desired FRP
Desired Idle RPM
Engine Coolant Temp
Engine Load
Engine Oil Pressure 03+
Engine RPM
Fuel Level
Fuel Rail Pressure
Fuel Temperature
Gear with TCL
Intake Air Temp
Main Inj Fuel Rate
Main Injection Timing
Manifold Abs Pressure
Mass Air Flow
Oil Life Remaining
Pilot Inj Command
Pilot Inj Rate
Pilot Inj Timing
Time 0-60
Time 1/4 mile
Trans Temp(04 and up)
Turbo Boost
Vehicle Speed
Video Capable Yes
