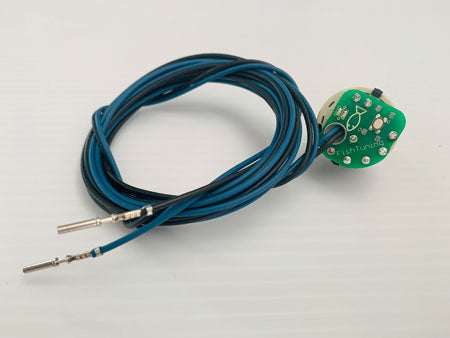

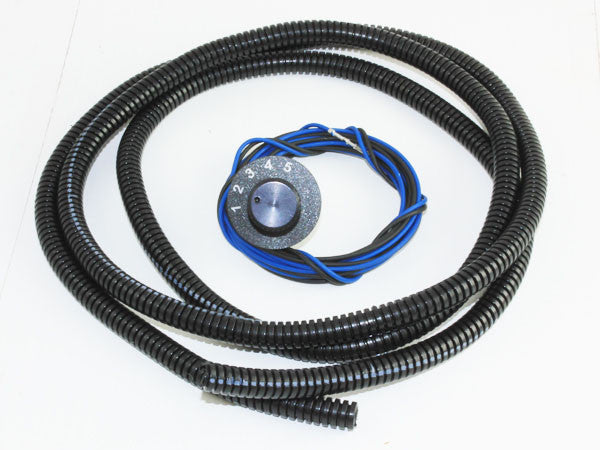

2001–2004 Duramax LB7 DSP5 Shift on the Fly Switch

Easily switch between your EFILive DSP5 tune files while driving with this DSP5 Shift on the Fly (SOTF) Switch for 2001–2004 LB7 Duramax trucks.

This switch allows you to change between up to five custom EFILive calibrations without stopping to reflash your ECM. Whether you're towing, commuting, or looking for maximum performance, you can instantly select the tune that best fits your driving conditions with the turn of a knob.

Designed specifically for the 2001–2004 LB7 Duramax, this switch installs directly into the ECM wiring harness and works seamlessly with EFILive DSP5 custom tuning.

Features

• Works with EFILive DSP5 Shift on the Fly tuning
• Instantly switch between up to five custom tune positions
• High-quality rotary selector
• Clean, factory-style installation
• Reliable and durable construction

Custom DSP5 tuning is required. This switch does not include tuning files.

Installation Instructions

FT DSP5 LB7 (Blue/Black)

1. Disconnect both negative battery cables.
2. Locate the Engine Control Module (ECM).
3. Disconnect the Blue ECM connector.
4. Remove the connector lock and access the rear of the connector.
5. Install the two supplied terminals into the following locations:
   • Blue Connector – Pin 69
   • Blue Connector – Pin 49
6. It does not matter which switch wire is installed into Pin 69 or Pin 49, as one connection is the signal and the other is ground.
7. Reassemble the connector and reconnect it to the ECM.
8. Route the switch wiring through the firewall, keeping it away from moving parts and excessive heat.
9. Mount the switch in your desired dash location.
10. Reconnect the batteries.

Verify Installation

1. Turn the ignition to the ON position (engine does not need to be running).
2. Press the small test button on the back of the switch.
3. If an LED illuminates, the switch is wired correctly. If no LED illuminates, verify that the terminals are fully seated in Blue Connector Pins 69 and 49.

Important Information

• This switch requires EFILive DSP5 tuning.
• No tune files are included.
• Professional installation is recommended if you are unfamiliar with automotive electrical wiring.

Complete your EFILive tuning package by adding this DSP5 switch and enjoy the convenience of changing between up to five custom calibrations while driving.
